Item Number:
PPK-640

Packaging
Weight: 1.5 lbs (0.7 kg)
Length: 14.5 Inches (37 cm)
Width: 10 Inches (25 cm)
Height: 2.25 Inches (5.7 cm)

Call Today to Order 1-877-463-9376

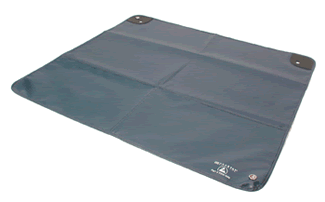

PPK-640 Field Service Mat - Mat Only

25 ½ x 24 inches blue Field Service Mat

The unique static-dissipative PPK-640 Field Service Mat is designed to easily transport equipment and material. This fabric, featuring a unique multi-layer construction is flexible, non-tacky and color stable.

Using this Field Service Mat allows the engineer to fold and set up a workstation anywhere in the plant.

Only available in blue, the PPK-640 Field Service Mat is highly resistant to tearing. The buried conductive layer is the primary path to ground within the structure. It’s construction provides the same resistance-to-ground measurements from any point on the material.


SPECIFICATIONS:

Resistance Rtt:
At 10 volts, 12% RH (Rtt) 106 – 107 ohms
At 100 volts, 50% RH (Rtt) 106– 107 ohms

Resistance Rtg:
At 10 volts, 12% RH (Rtg) 106– 1077 ohms
At 100 volts, 50% RH (Rtg) 106– 107 ohms

Min / Max Temperature Range -24ºC to 60ºC (-10º F to + 140º F)

Size:
25 ½ x 24 inches

Thickness:
~ .015 inches

Color:
Blue
